PNEUMATIC ANGLE SEAT VALVE
Keyword:
Valve
Category：
Products
Valve
PNEUMATIC ANGLE SEAT VALVE
E-mail：
Details
Y-TYPE SHUT-OFF VALVE
- Features
The external advanced guide angle seat valve has a self-adjusting sealing cover between the overflow port and the slider. The valve body angle seat structure can achieve a large flow rate, especially when compared to ordinary globe valves.
- Parameters
|
Model |
AAS/AAF |
|
|
Applicable Medium |
Neutral gas, air, water |
|
|
Ambient Temperature |
180℃ |
|
|
Applicable Pressure |
0-16bar |
|
|
Medium Temperature |
180℃ |
|
|
Material |
Body |
Stainless Steel |
|
Actuator Shell |
Stainless Steel |
|
|
Seal |
PTFE |
|

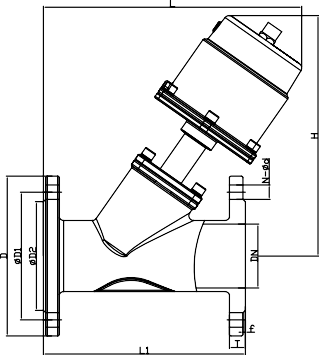

- Dimensions (mm)
|
DN |
L |
L1 |
ΦD1 |
N-Φd1 |
H |
D |
Actuator |
|
15 |
185 |
130 |
65 |
4-Φ14 |
150 |
95 |
Φ50 |
|
20 |
188 |
130 |
75 |
4-Φ14 |
160 |
105 |
Φ50 |
|
25 |
218 |
140 |
85 |
4-Φ14 |
170 |
115 |
Φ50 |
|
32 |
225 |
150 |
100 |
4-Φ18 |
203 |
135 |
Φ63 |
|
40 |
240 |
180 |
110 |
4-Φ18 |
210 |
145 |
Φ63 |
|
50 |
265 |
195 |
125 |
4-Φ18 |
223 |
160 |
Φ63 |
|
65 |
290 |
230 |
140 |
4-Φ18 |
260 |
185 |
Φ80 |
|
80 |
330 |
250 |
160 |
8-Φ18 |
315 |
195 |
Φ100 |
|
100 |
350 |
300 |
180 |
8-Φ18 |
320 |
215 |
Φ125 |
